Benefits
- Ensuring Reliability and Durability
- Uninterrupted Power for Critical Applications
Prevents outages in environments where “lights out” is not an option, such as hospitals and data centers - Multiple Transfer Modes
Supports open (break-before-make), delayed + timed neutral position (break-before-make) transition - Fast and Secure closed transitions (make-before-break)
Less than 100ms with in-phase monitoring (synch check) to ensure safe and reliable transfers or extended parallel times for soft loading applications. - Transfer commit
Prevent interruptions by committing to a transfer once initiated
- Uninterrupted Power for Critical Applications
- Improves Operational Efficiency
- Reduced Downtime
Intelligent limit switch feedback ensures plausibility before initiating transfers, minimizing errors and delays - Sensitive Equipment Protection
Protect sensitive equipment by disconnecting motor loads during power transfers - Power Usage Optimization
Optimize power usage by prioritizing your preferred energy source - Routine Health Checks
Engine exerciser programs (load tests) ensure emergency sources are regularly tested and ready for operation
- Reduced Downtime
- Simplifying Complex ATS Configurations
- Wide Application Support
Easily configurable for Utility-to-Generator, Generator-to-Generator, or Utility-to-Utility systems using circuit breakers or latching contactors - Programmable Logic
LogicsManager™ enables custom transfer schemes without external relay logic or separate PLCs, reducing system complexity and cost - Vector Group Adjustment
Safeguarding system stability by minimizing risk of phase conflicts between power sources that involve transformers or generators with different phase configurations
- Wide Application Support
- Reduces Installation and Maintenance Complexity
- Global, Field-Proven Design
Built on the trusted DTSC-200 platform, offering multilingual support including English, German, Spanish, Polish, Russian, and French to meet the needs of diverse users worldwide - Quick and Secure Setup
Simply configure the system using Woodward’s free software ToolKit™ connecting via USB or directly through the HMI panel, both with password protection for enhanced security - Expandable I/O

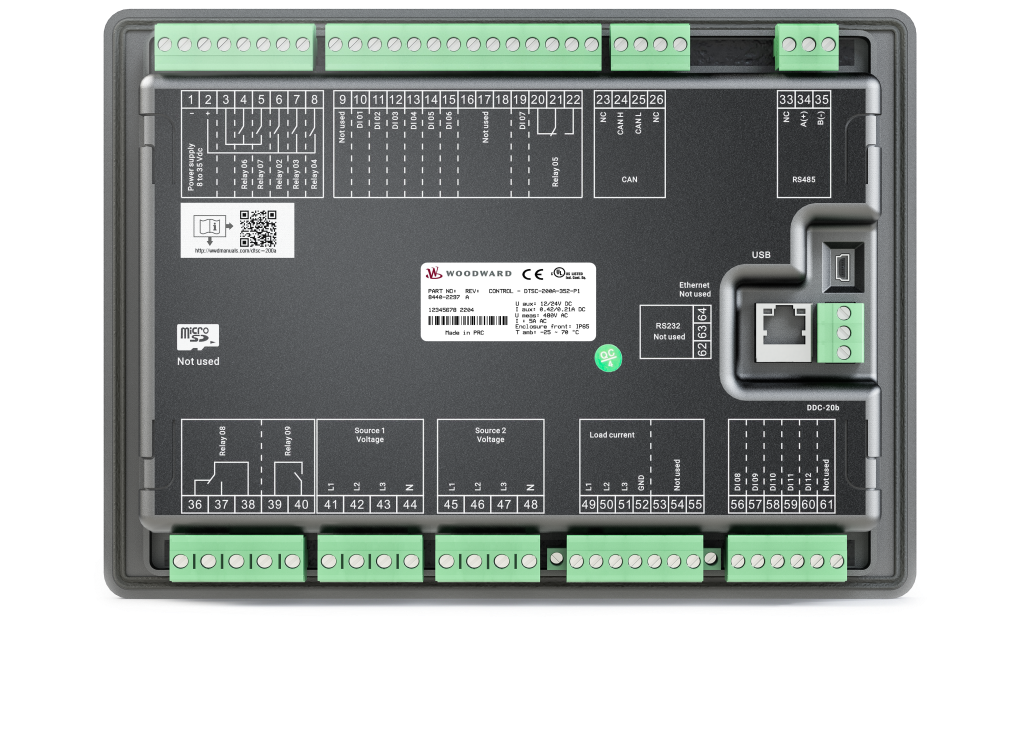

Supports additional discrete inputs and outputs via external Woodward IKD modules, providing flexibility for system expansions - Improved troubleshooting
Based on event recorder with real time clock - Maintenance-Free Hardware
Eliminates the need for servicing traditional device internal backup batteries by using maintenance-free super capacitors, ensuring reliable performance during power failures
- Global, Field-Proven Design
- Improves System Safety

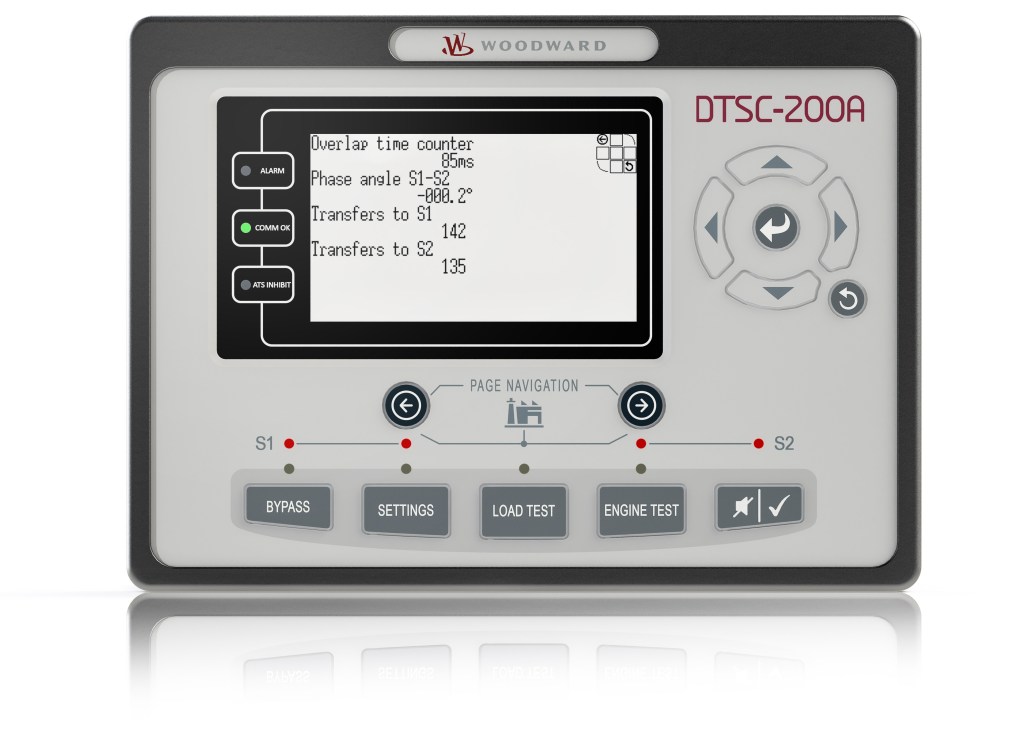

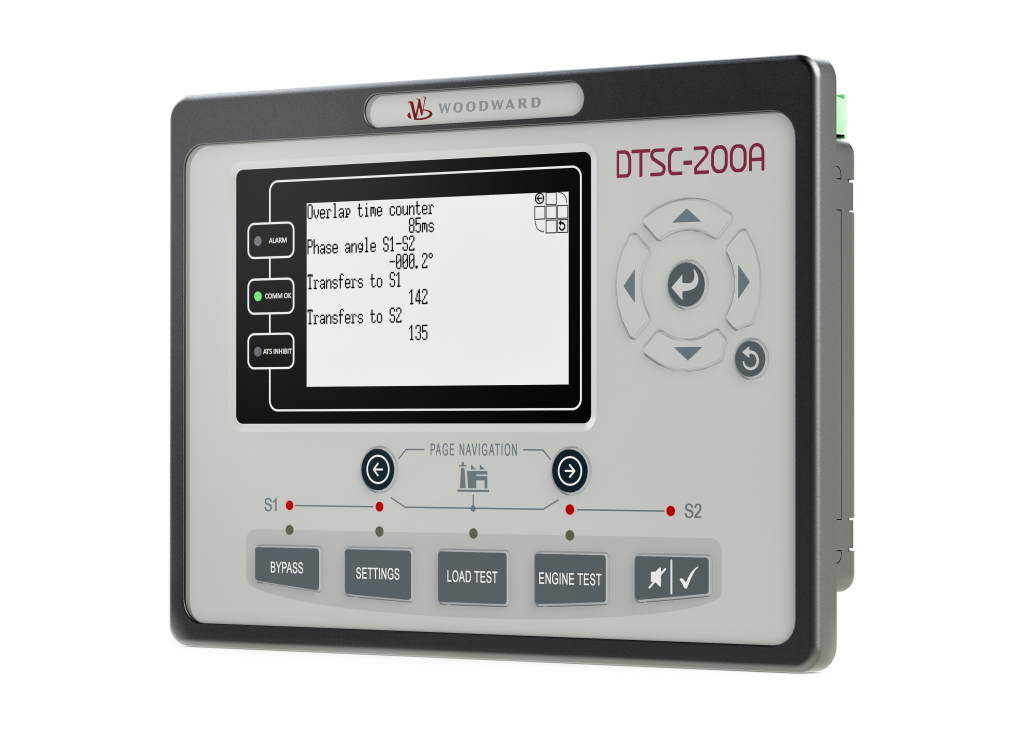

- In-Phase Monitoring
Ensures transfers occur within a safe phase angle difference, reducing risks during source switching - Secure Overlap Control
Shunt trip signals / remote breaker tripping prevent sources from being paralleled for longer than desired, ensuring safe operation - Critical Loads Prioritization
sheds non-essential loads during power shortages - Elevator Pre-Signal
Delivers a configurable timed warning signal to elevator systems prior to power transfers, enhancing building safety
- In-Phase Monitoring
Features
LogicsManager™
Programmable Boolean logic functions along with ample, expandable discrete I/O allows
for complex transfer schemes without using external relay logic or a separate PLC
FlexApp™
Easily configures the DTSC-200A for: Utility-to-Generator, Generator-to-Generator or Utility-to-Utility applications

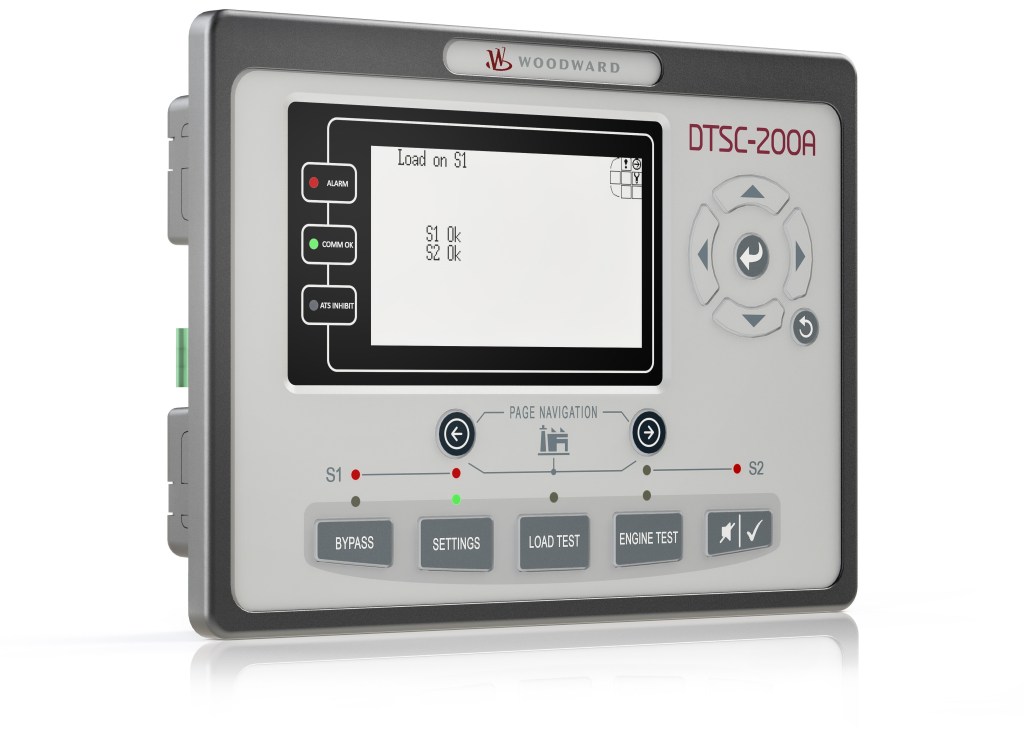

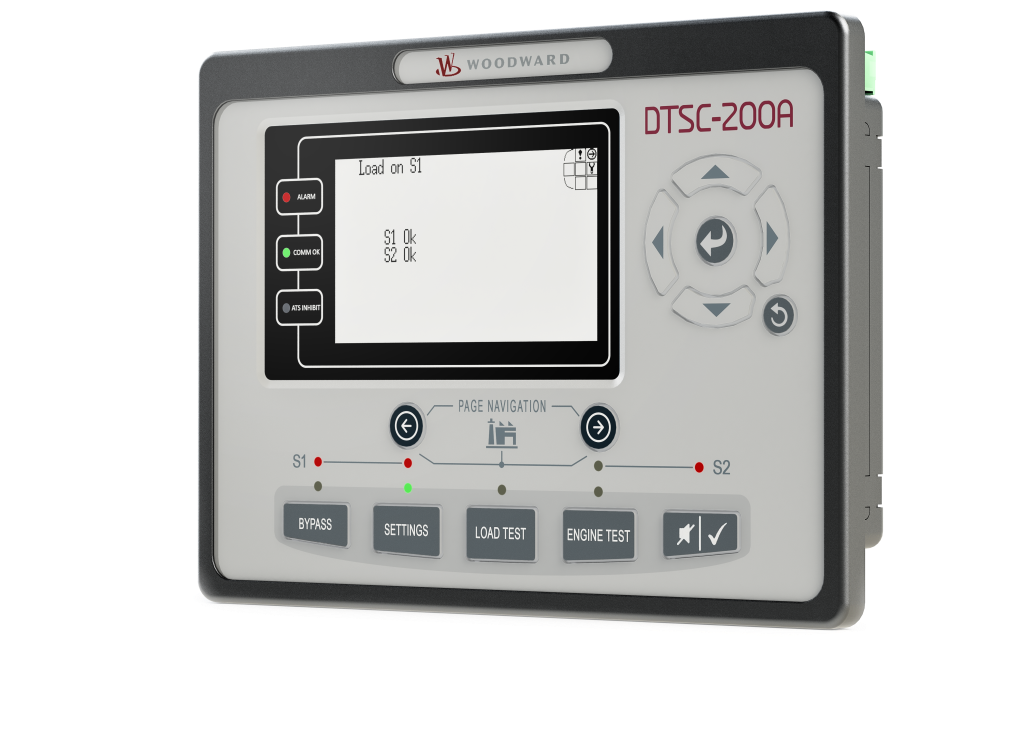

DynamicsLCD™
The adaptive and interactive 4.3”, 480 x 272-pixel TFT LC display with tactile buttons
and a clear menu structure ensure intuitive user operation and navigation
