Features and Benefits
- On-Board driver reduces the need for costly climate-controlled terminal boxes and associated cabling
- Cannon plug connector versions available – reduces the time required for valve change outs and eliminates costly wiring mistakes
- Self-cleaning shear-type metering action keeps the metering port free from performance-limiting deposits of gas condensates, contaminants, and system debris
- Redundant position feedback resolvers and an integral failsafe spring to maximize reliability and safety
- Direct drive technology eliminates gear box wear
- Redundant control interfaces (Analog, CANopen, Ethernet IP)
- Integrated service tool with on-board diagnostics
- Drop-In piping solutions available for GS6/GS16/3103 models
Product Variants

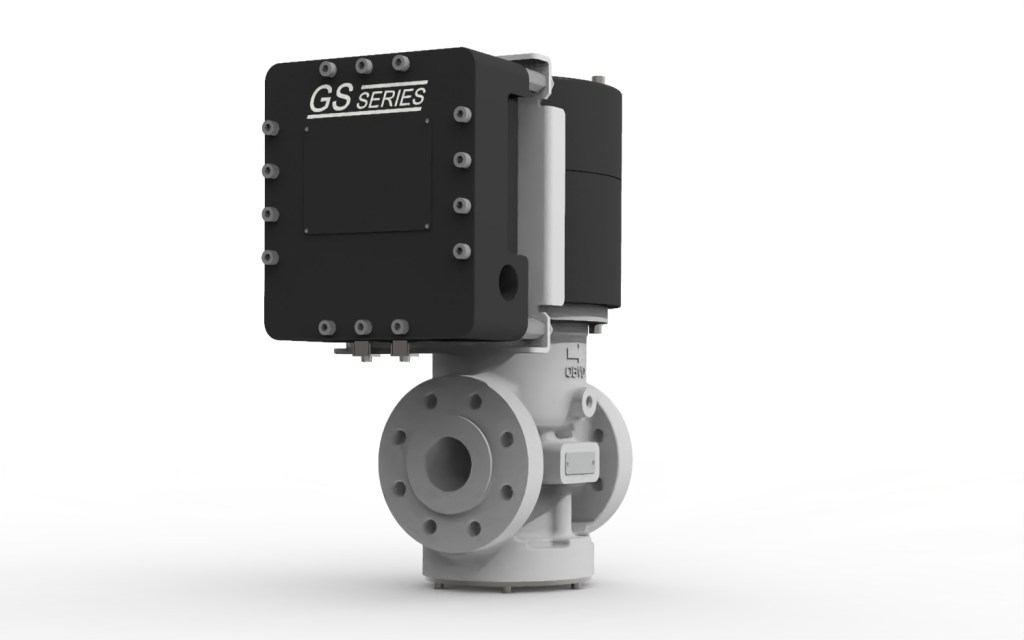

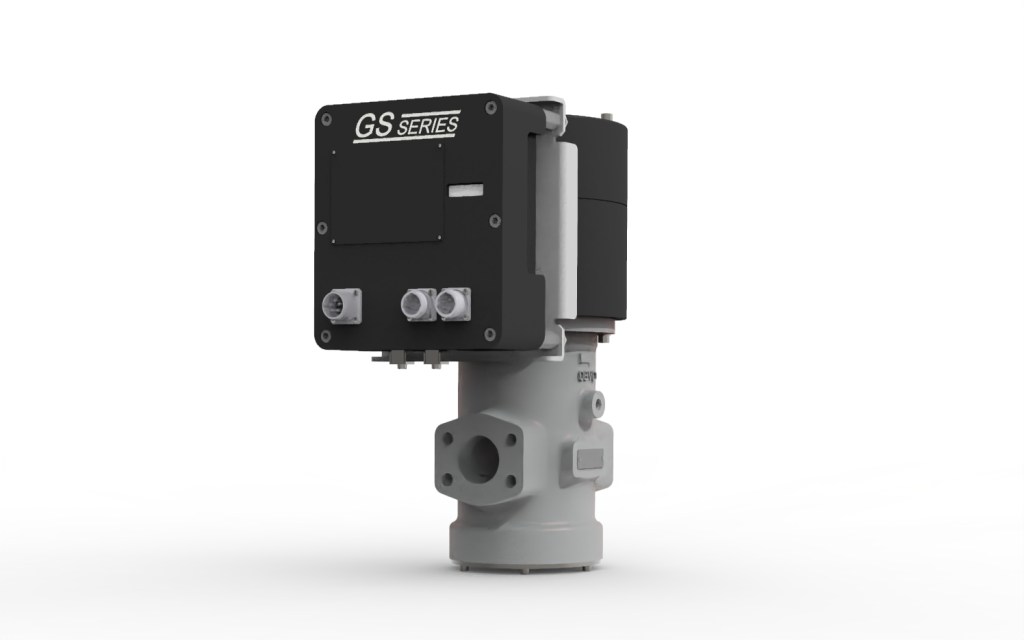

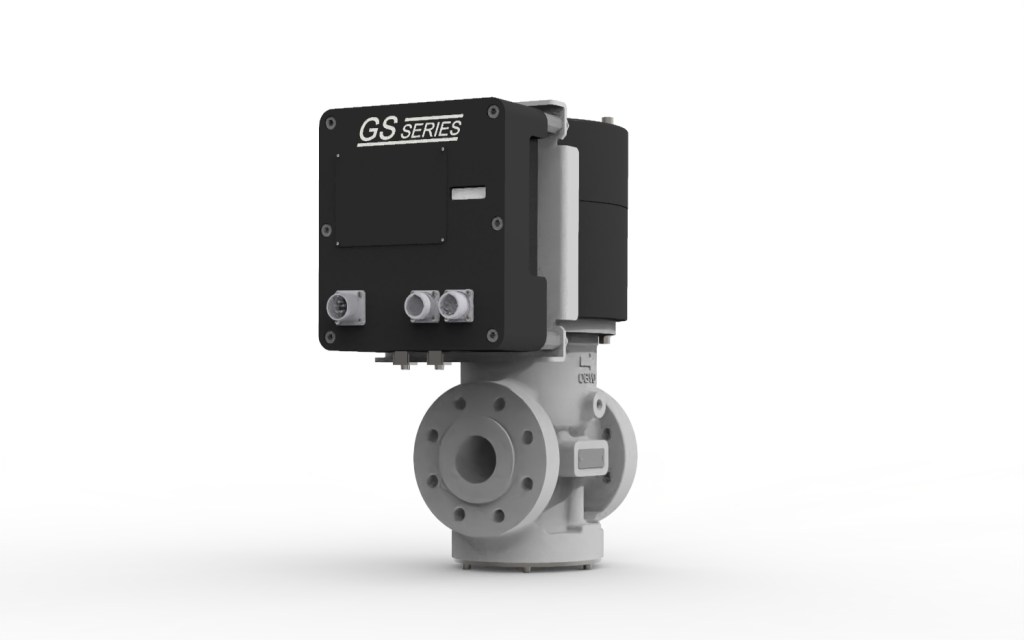

- Aluminum or Stainless-Steel Body
- Connectorized and Conduit Entry Driver
- SAE per J518 Code 61 and ANSI 600# RF Flange Options
- 24 VDC or 125 VDC Input Voltage Options
- 100% Hydrogen Compatible Model Available
- On-Board Driver can be rotated from the factory in 90 degree increments
Product Specifications
Maximum Gas Supply Pressure:
- 750 psig (5170 kPa) aluminum body
- 1440 psig (9928 kPa) stainless steel body
Fuel Temperature:
- -40 to +200 degrees Fahrenheit (-40 to +93 degrees Celsius) – aluminum body
- -40 to +350 degrees Fahrenheit (-40 to +177 degrees Celsius) – stainless steel body
Ambient Temperature:
- -40 to +200 degrees Fahrenheit (-40 to +93 degrees Celsius)
Port Sizes
The GS-Series is available with five different port sizes to optimize valve performance for various flow and pressure drop requirements. Standard port effective area sizes are:
GS40:
- .30 in2 (193.5 mm2)
- .75 in2 (483.9 mm2)
GS50:
- 1.00 in2 (645.1 mm2)
- 1.50 in2 (968.0 mm2)
- 2.00 in2 (1290.3 mm2)
