Power Management Accessories

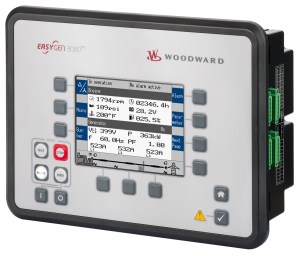

Enhancing functionality and supporting specialized requirements, easYgen-3000XTaccessories ensure seamless integration into complex power systems.

REQUEST A QUOTE

Modules

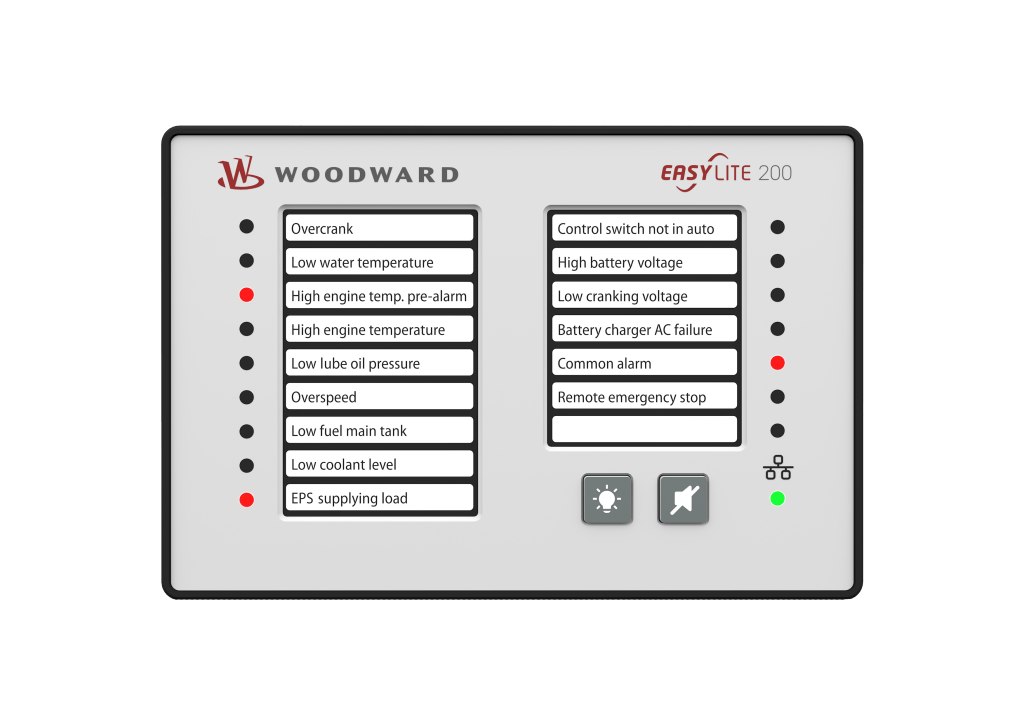

Remote Annunciator – easYlite-200: Provides real time visualization and audible alerts, providing information about system status, malfunctions etc., without needing to go to the main control panel.
Digital I/O Expansion Module – IKD: 8 discrete inputs, 8 relay outputs FORM C via CAN bus communication

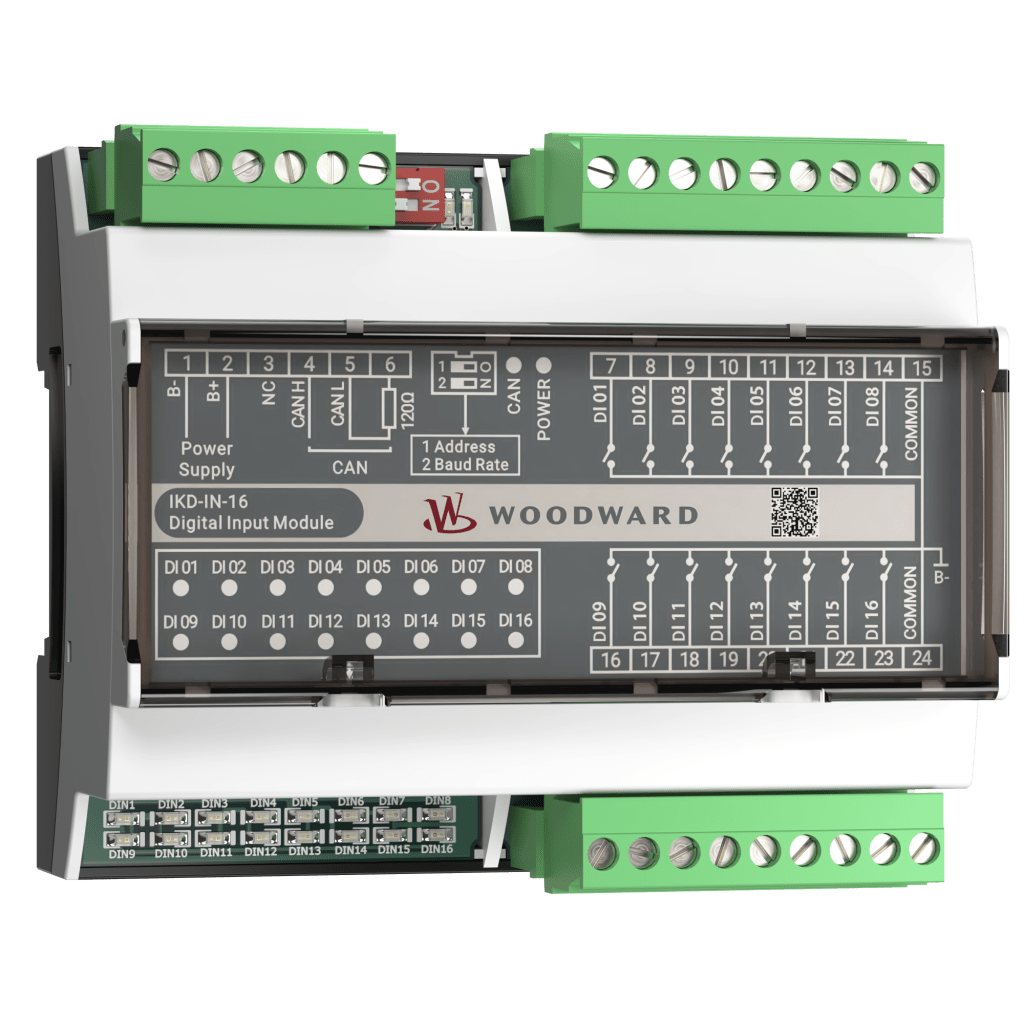

Digital Input Expansion Module: 16 discrete inputs, CAN bus communication, very fast CAN ID configuration via dip-switches
Digital Output Expansion Module: 16 discrete inputs, CAN bus communication, very fast CAN ID configuration via dip-switches

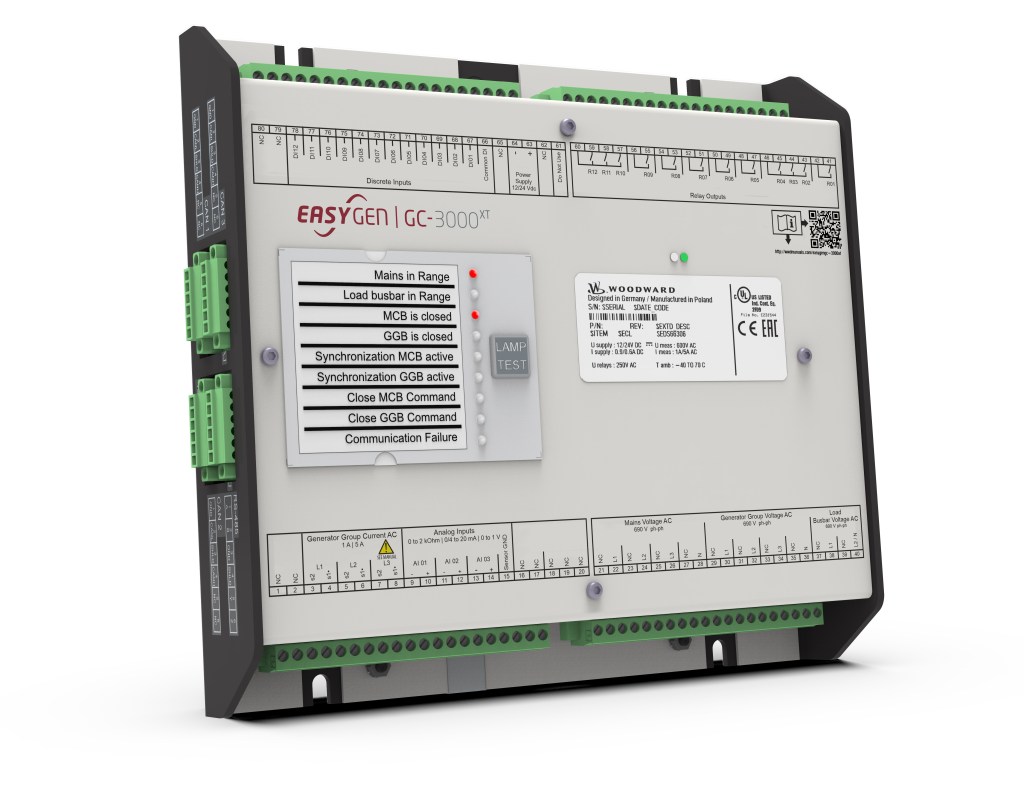

Group Controller: Allows connection between 496 gensets / power generation units and 1200 breakers for complex applications and large power generation fleets connected together

Software Tools

Configuration Software Toolkit:
- Basic Software License: Included free of charge in the Toolkit download, and enables users to configure, monitor & troubleshoot on easYgen, LS5 and LS6 Breaker Controllers, MFR-300 and other controllers
- Download link

Modbus Master Mapper:
- Modbus / TCP customization to read and/or write data
- Flashing of the generated customized Modbus / TCP via Toolkit into the controllers easYgen3000XT and LS-6
- Mappable address points for read/write tasks to exchange information with Power Electronics (eg. PV Inverters), protection relays, kW Transducers
- Download link
Data Telegram Mapper: Simplify your retrofit projects, customize your Modbus TCP protocol
- Configure the Modbus data protocols
- Up to 300 addresses
- Upload file into the easYgen3000XT or LS-6XT (*.map file)
- Documentation of the created telegram (HTML file)
- Download link
Emulation of Load Dependent Start Stop: Improve fuel efficiency and reliability, Work through what-if scenarios for your genset fleet
- Monitor that all or several of the power generating assets does not approach maintenance cycle simultaneously
- Maintain sufficient reserve power on the bus in anticipation of a large consumer and that the reserve power automatically falls back after the large consumer breaker is closed
- Start and stop the gensets according to max/min loading criteria, the later especially to help burn car-bon deposits on engines cylinder head
- Switch ON and OFF the genset at every pre-defined run hours to equalize the total run hours
- Determine the optimum combination of gensets when the fleet consists of mixed size gensets
- Download Link
HMI Language Customization:
- Add / change HMI display language of the easYgen3000XT or remote panel XT display
- Use MS Excel to modify your language
- Flashing into the devices via ToolKit
- Simulation of the HMI to check the translation on-the-fly
- Re-use previously translated texts
- Download Link
Interconnect Mapper:
- Unlock the full potential of your easYgen with Ethernet communication capabilities
- Seamlessly send and receive data between easYgen devices with InterConnectMapper
- Create setup files for EG3000XT and related devices to enable communication via UDP messages
- Define who sends which data at which rate and subscribe to data from other devices
- Utilize up to 99 analog values and 99 Boolean values for receiving data from other devices
- Send all AnalogManager and LogicsManager values, as well as defined indices and constants
- Group Boolean flags into 16-bit values for efficient data transfer
- Easily upload map files and SCP files via Woodward Toolkit or ftp access
- Download Link

Gateway Accessories

Remote Access Gateway:
- Allows users to start or stop generators remotely
- Gather operational data such as energy consumption, operating hours, temperatures, etc. in the cloud and analyze these trends to reduce maintenance costs
- Receive alarms via email or SMS when the generator reaches certain thresholds
- Automatically generate email reports
- Connect the system to your own servers or applications
Fiber Optic Converter: Up to 40km communication range extension via Fibre Optic System, create electromagnetic ruggedness
Profibus Converter: ESEPRO device – addresses up to 8 easYgen or LS Series controllers, direct mapping of data into process I/O
Ethernet Converter: for the old easYgen3000 – non XT, convert CAN to Ethernet.
